Bobcat G20C-5
| Make | Bobcat |
| Model | G20C-5 |
| Type | Internal Combustion: Pneumatic |
How can we help?
Description
G20C-5 — INTERNAL COMBUSTION PNEUMATIC FORKLIFT
• Small capacity – 3,000- to 4,000-pound range
• Pneumatic tire
• 2.4-liter LPG engine
• Oil-cooled disc brakes

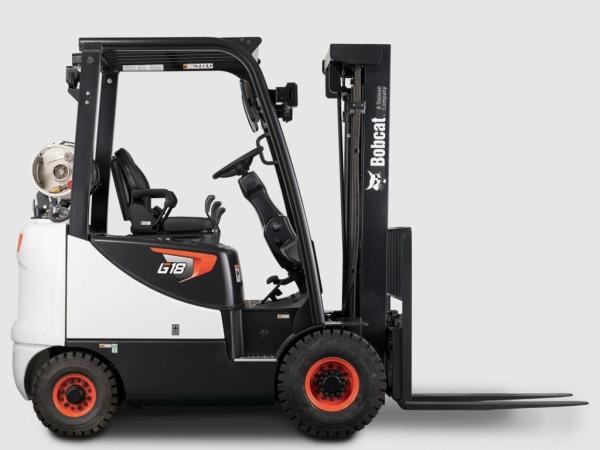

Similar models may be shown in addition to the featured model. Equipment may be shown with options.
Specifications are subject to change without prior notice.
Models
OPERATIONAL ENHANCEMENTS:

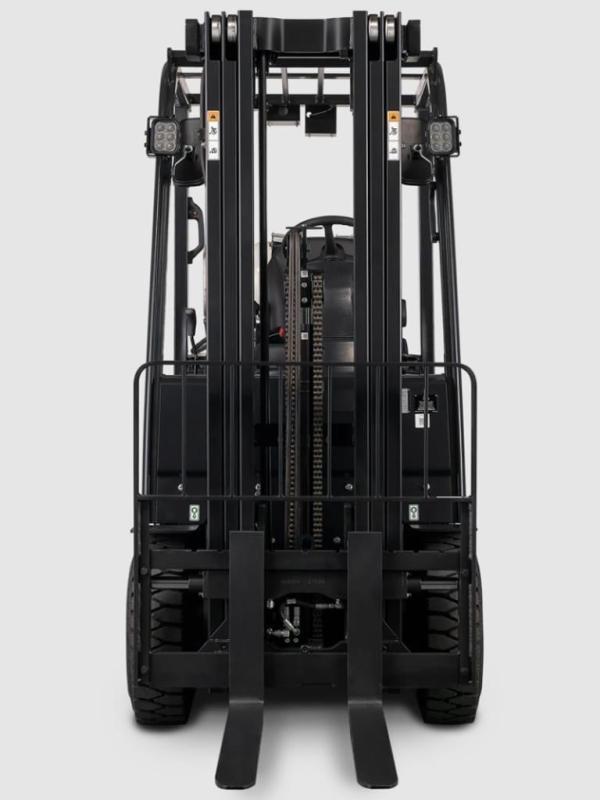

HIGH VISIBILITY MAST
The forklift has hydraulic hoses and mast chains which are strategically placed to enhance forward visibility.
OPERATOR SENSING SYSTEM (OSS)
Should the operator leave the seat, the OSS automatically initiates these functions:
• Quickly stops all truck movement
• Locks the lift, lower and tilt functions of mast and hydraulic assemblies
• A seatbelt warning light will alert the operator to re-fasten the seat belt
• The shift selector must be in the neutral position in order to re-start the truck
STROBE, ALARM, MIRRORS
A strobe, backup alarm, and side mirrors come standard on all models.
REAR GRAB BAR W/ HORN BUTTON
Allows operator to sound the horn while holding onto the rear grab bar handle and travelling in reverse. Standard on these models.
DURABLE RELIABILITY:
INDUSTRY PROVEN LP ENGINES
Our LP engines provide excellent power, performance, fuel economy, low noise, and low vibration along with superior durability.
OIL COOLED DISC BRAKES
This 'Best-in-Class’ brake system comes with a 5-Year or 10,000 working hour warranty:
• Discs are submerged in oil, keeping them cool and limiting wear
• 100% of friction material is used for superior stopping power
• OCDB are more easily serviced in the field than traditional brakes
• System is sealed for maximum protection against contamination
SUPERIOR COMPONENTS VS. COMPETITIVE MODELS
The steer axle assembly is built with durable components which enhance product life and reduce maintenance costs.
• Larger diameter kingpins and tapered roller bearings for a stronger axle
• Tapered rollers are stronger against side impact forces
• Tapered roller bearings have an inner race to eliminate wear on the kingpin
SIMPLIFIED SERVICEABILITY:
EASY ACCESS TO SERVICE AREAS
• Spring lock on engine cover
• Tool free floor plates for easy access
WELL-POSITIONED MAINTENANCE COMPONENTS
• All fuse and relay access is centralized and easy to access
QUICK ACCESS TO KEY ELEMENTS
• Battery
• Air filter
• Oil filter
• Dipstick and fluid level indicators
WELL-PLACED LED DISPLAY
• Continuous monitoring of all vital systems
• Keeps operators informed of truck performance and health
• Service error codes on dashboard display
• Large LED display is easy to read and bright even in well-lit locations
LOWER COST OF OWNERSHIP:
STEER AXLE
The hydrostatic steer axle has fewer moving parts to replace, saving you downtime and costing you less to maintain.
SUPERIOR COMPONENTS
Require less maintenance and reduces costs
• Larger king pins and tapered roller bearings
• Tapered roller bearings are superior against side impacts
DUAL ELEMENT AIR CLEANER
This feature offers added protection to the engine's air intake, which extends engine life and reduces maintenance costs.
ENHANCED PRODUCTIVITY:
INTEGRAL SIDE SHIFTER
Replaces the forklift’s standard carriage, therefore increasing residual load capacity. It allows the operator to shift load from side to side for precise placement, reducing handling time, and improving maneuverability.
OPERATOR CONVENIENCE PACKAGE
Provides excellent storage for paperwork, refreshments, small tools, etc.
SHIFT PROTEK HOT SHIFT PROTECTION
Shift ProTek limits directional changes to under 5 mph, allowing for shift-on-the-fly and making quick shuttle applications a breeze. The market-proven Shift ProTek transmission precisely modulates clutch oil pressure for smooth forward and reverse directional changes. Shift on the go without damage to the transmission.
AUTO TILT LEVELING SYSTEM
The optional auto tilt leveling system feature stops the mast at a vertical position to protect the load. This prevents uneven stacking that may potentially cause product damage.
Specifications
- Dimensions - Free Lift: 5.3 in
- Dimensions - Ground Clearance Loaded: 4.7 in
- Dimensions - Ground Clearance Unloaded: 5.9 in
- Dimensions - Height - Mast Lowered: 86 in
- Dimensions - Length: 124 in
- Dimensions - Load Management Center: 15.5 in
- Dimensions - Overhead Guard Height: 85.4 in
- Dimensions - Turning Radius: 80.7 IN
- Dimensions - Wheelbase: 55.1 in
- Electrical System - :
- Electrical System - Rated Power: 37.4 kW
- Engine - Engine Fuel: LPG
- Engine - Engine Model: HMC2.4
- Engine - Max Torque:
- Key Specifications - Max Load Capacity lb (kg): 4,000 lb
- Performance - Lift Speed - Loaded: 23.6 ft/min
- Performance - Lift Speed - Unloaded: 25.6 ft/min
- Performance - Load Center: 24 in
- Performance - Machine Rated Capacity: 4,000 lb
- Performance - Max Load Capacity: 4,000 lb
- Performance - Travel Speed - Loaded: 11.2 mph
- Performance - Travel Speed - Unloaded: 11.8 mph
Features
- High-powered, fuel-efficient LPG engine
- Refined operator compartment ergonomics
- Lift and tilt locking hydraulic control valve
- Power reversal transmission
- Virtually maintenance-free oil-cooled disc brakes
- OSS (Operator Sensing System) for safety
