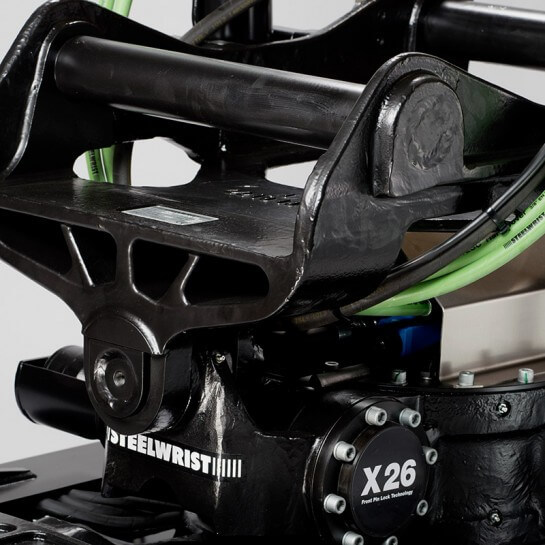

Steelwrist X26 SQ70 (18-26 tonnes)
| Make | Steelwrist |
| Model | X26 SQ70 (18-26 tonnes) |
| Type | Tiltrotators |
How can we help?
Description
A tiltrotator for machines between 18 and 26 tonnes
Steelwrist tiltrotator is designed to deliver the power and durability that is a must for larger excavators. A well thought-out design, raw power, precision and smoothness are combined in rotation and tilt functions. This facilitates your work and makes you flexible to take on a variety of challenging new jobs.
Gear housing, bottom and top in solid cast steel, hardened shafts and piston rods, dual acting tilt cylinders. Control system, gripper cassette with four finger gripper and central lubrication as options.
Tiltrotator options
Control Systems
XControl if you want to have complete freedom to run all functions simultaneously or four hose system with proportional control from the excavator. Both types of control systems meet the upcoming ISO13031.
Gripper Cassette
Our tiltrotators can be equipped with gripper cassette and four finger gripper that will make your excavator even more flexible. The gripper cassette can be retrofitted.
Central lubrication
Our tiltrotators can be equipped directly from factory with central lubrication that fit all central lubrication systems in the market. Read more here.
Specifications
- Attachment coupler: SQ70
- Building height from (inch): 22.48
- Gripper reach (inch): 37.80
- Hydraulic extras with grip: 1
- Hydraulic extras without grip: 2
- Length (inch): 35.47
- Length with gripper (inch): 46.69
- Lubrication of the gear housing: Grease
- Maximum tilt angle (degrees): 45
- Necessary flow (gallons/min): 26-32
- Pressure (bar): 210
- Recommended machine weight (lb): 39600-57200
- Rotational force (kNm): 8,8
- Rotational speed (r/m): 8
- Tilt power (kNm): 61
- Top unit: SQ70
- Type: SQ70/SQ70
- Weight from (lb): 1316
- Weight with gripper from (lb): 1573
- Width (inch): 27.17
- Width cylindra (inch): 33.39
- Width with gripper (inch): 31.77
